Tuam Tshoj GYFTA53 Armored
Kev piav qhia

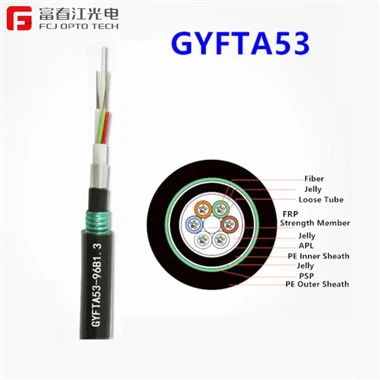

Cov fibers, 250μm, yog positioned nyob rau hauv ib tug xoob raj ua los ntawm ib tug siab modulus yas. Cov hlab yog ntim nrog cov dej-resistant filling compound. Ib qho Fiber Reinforced Plastic (FRP) nyob hauv nruab nrab ntawm cov tub ntxhais uas tsis yog xim hlau muaj zog. Cov hlab ntsha (thiab cov fillers) raug tso tseg nyob ib ncig ntawm cov tswv cuab lub zog rau hauv ib qho kev sib cog lus thiab ncig. Ib qho Aluminium Polyethylene Laminate (APL) yog siv nyob ib ncig ntawm cov tub ntxhais cable. Tom qab ntawd cov tub ntxhais cable yog them nrog nyias polyethylene (PE) puab sheath, uas yog ntim nrog jelly los tiv thaiv nws los ntawm dej ingress. Tom qab siv corrugated steel daim kab xev, lub cable tiav nrog PE txheej txheej.
Yam ntxwv
· Zoo mechanical thiab kub ua haujlwm
· Siab zog looes raj uas yog hydrolysis resistant
· Tshwj xeeb tube filling compound ua kom muaj kev tiv thaiv tseem ceeb ntawm fiber ntau
· Crush resistance thiab yooj
· Cov kev ntsuas hauv qab no raug coj los xyuas kom meej lub cable tsis muaj dej:
- Ib leeg Fiber Reinforced Yas ua lub hauv paus muaj zog cov tswv cuab
- Loose tube filling compound
- 100 feem pua cable core filling
- APL noo noo barrier
- PSP txhim khu kev ya raws-pov thawj
- Cov khoom thaiv dej
Cov qauv
GYFTA53 cable ua raws Standard YD/T 901-2001nrog rau IEC 60794-1.
Optical yam ntxwv
|
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
Attenuation (ntxiv rau 20 degree) |
@850nm |
|
|
Tsawg dua lossis sib npaug rau 3.0 dB/km |
Tsawg dua lossis sib npaug rau 3.0 dB/km |
|
@1300nm |
|
|
Tsawg dua lossis sib npaug rau 1.0 dB/km |
Tsawg dua lossis sib npaug rau 1.0 dB/km |
|
|
@1310nm |
Tsawg dua lossis sib npaug rau 0.36 dB/km |
Tsawg dua lossis sib npaug rau 0.40 dB/km |
|
|
|
|
@1550nm |
Tsawg dua lossis sib npaug rau 0.22 dB/km |
Tsawg dua lossis sib npaug rau 0.23 dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
Ntau tshaj lossis sib npaug li 500 MHz · km |
Ntau tshaj lossis sib npaug li 200 MHz · km |
|
@1300nm |
|
|
Ntau tshaj lossis sib npaug li 1000 MHz · km |
Ntau tshaj lossis sib npaug li 600 MHz · km |
|
|
Numerical Aperture |
|
|
{{0}}.200±0.015NA |
{{0}}.275±0.015NA |
|
|
Cable Cut-off Wavelength |
Tsawg dua lossis sib npaug li 1260nm |
Tsawg dua lossis sib npaug li 1480nm |
|
|
|
