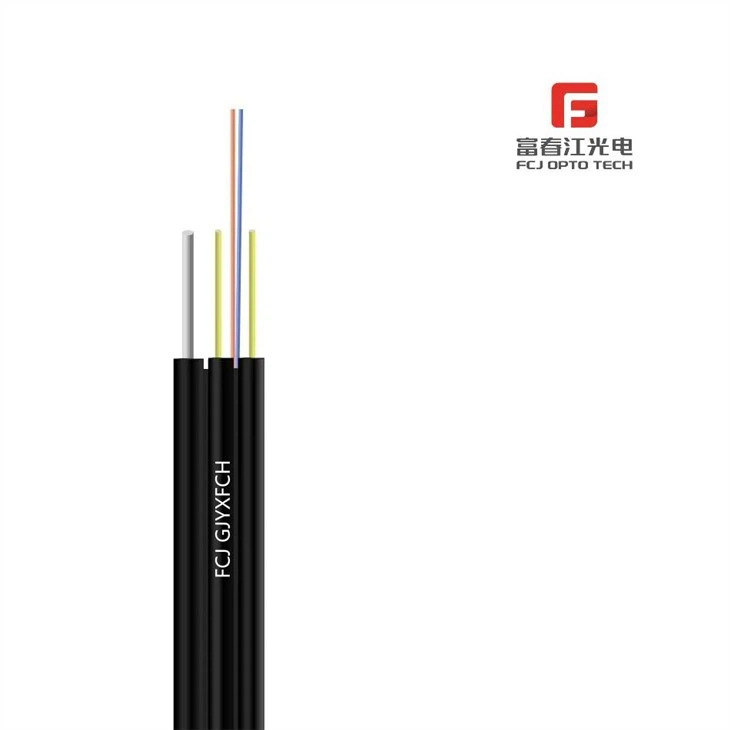

GJYXCH FTTH Fiber Optic Drop Cable
Product Description:
GJYXCH 1 ~ 8cores FTTH Fiber Optic Drop Cable nrog Phosphating hlau xaim xaim,G652D/G657A1/G657A2 fiber ntau LSZH txheej txheej
GJYX(F)CH yog FTTH nco cable nrog kev txhawb nqa tus kheej. Lub tsev kho qhov muag fiber ntau yog nyob rau hauv qhov chaw. Ob txoj hlua hlau (los yog FRP, KFRP) muab tso rau ntawm ob sab, ces
ib qho ntxiv steel hlau txuas rau sab nraud. Thaum kawg, lub cable ua tiav nrog cov xim dub lossis dawb PVC lossis LSZH (tsis muaj pa luam yeeb, tsis muaj halogen, nplaim hluav taws) sheath.
Nta thiab daim ntawv thov:
* Cov qauv yooj yim, lub teeb yuag thiab muaj zog practicability.
* Qhov tshwj xeeb zawj tsim, yooj yim rau tev tawm thiab txuas, yooj yim installation thiab txij nkawm;
* Ib qho hlau hlau ib leeg nrog cov khoom txhawb ntxiv ua rau lub cable muaj zog tensile zoo.
* Sab nraum zoov huab cua
Fiber ntau parameter
Technical parameters
Main mechanical thiab environmental properties
Txheem ntoo nruas (Pallets) lossis thawv thawv;
Txheem Length: 1000m / 2000m lossis customized
Fiber ntau parameter
|
|
G.652.D |
G.657A2 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
- |
- |
Tsawg dua los yog sib npaug rau 3.0dB/km |
Tsawg dua los yog sib npaug rau 3.0dB/km |
|
@1300nm |
- |
- |
Tsawg dua lossis sib npaug rau 1.0dB/km |
Tsawg dua lossis sib npaug rau 1.0dB/km |
|
|
@1310nm |
Tsawg dua los yog sib npaug rau 0.36dB/km |
Tsawg dua los yog sib npaug rau 0.36dB/km |
- |
- |
|
|
@1550nm |
Tsawg dua lossis sib npaug rau 0.22dB/km |
Tsawg dua los yog sib npaug rau 0.23dB/km |
- |
- |
|
|
Bandwidth |
@850nm |
- |
- |
Ntau tshaj lossis sib npaug li 500MHz·km |
Ntau tshaj lossis sib npaug li 200MHz·km |
|
@1300nm |
- |
- |
Ntau tshaj los yog sib npaug rau 1000MHz·km |
Ntau tshaj lossis sib npaug li 600MHz ·km |
|
|
Lub wavelength |
|
Tsawg dua lossis sib npaug li 1260nm |
Tsawg dua lossis sib npaug li 1260nm |
- |
- |
|
Polarization hom dispersion |
Ib leeg fiber |
Tsawg dua lossis sib npaug rau 0.20ps/√km |
Tsawg dua lossis sib npaug rau 0.20ps/√km |
- |
- |
|
Link tus nqi (M=20,Q=0.01%) |
Tsawg dua lossis sib npaug rau 0.10ps/√km |
Tsawg dua lossis sib npaug rau 0.10ps/√km |
- |
- |
|
Technical parameters
|
|
|
|
|
||
|
|
Fiber cores |
1 |
2 |
4 |
|
|
Cov tswv cuab muaj zog |
Khoom siv |
KFRP / Hlau hlau |
|
||
|
Txhawb nqa tus kheej |
Khoom siv |
Hlau hlau |
|
||
|
Lub tsho sab nrauv |
Thickness hli |
Ntau dua lossis sib npaug rau 0.3 |
|
||
|
Sab nraud dia. |
mm |
(2.0*5.0)±0.1 |
(2.0*5.0)±0.1 |
(2.0*6.0)±0.1 |
|
|
Kub |
ºC |
-40 ~ ntxiv 60 |
|
||
|
Tensile |
Luv/Long N |
600/300 |
|
||
|
Flatten |
Luv/Long N |
2200/1000 |
|
||
|
* Lus Cim: Los yog kho raws li tus neeg siv khoom xav tau |
|
||||
Main mechanical thiab environmental properties
|
Cov khoom kuaj |
Test txuj |
Tus nqi tshwj xeeb |
Kev xav tau |
|
Tensile |
IEC 60794-1-2-E1 |
Raws li technical Parameter |
Residual ntxiv attenuation Tsawg dua los yog sib npaug rau 0.03dB |
|
Flatten |
IEC 60794-1-2-E3 |
Raws li technical Parameter |
Ntxiv attenuation nyob rau hauv lub sij hawm luv luv quab yuam Tsawg dua los yog sib npaug rau 0.4dB |
|
Crush |
IEC 60794-1-2-E4 |
Impact 1N, Qhov siab 1m, tsawg kawg yog 3 qhov chaw |
Residual ntxiv attenuation Tsawg dua los yog sib npaug rau 0.4dB |
|
Rov qab khoov |
IEC 60794-1-2-E6 |
20n300x ua |
Residual ntxiv attenuation Tsawg dua los yog sib npaug rau 0.4dB |
|
Kub |
IEC 60794-1-2-F1 |
-40ºC ~ ntxiv 60ºC |
Ntxiv attenuation Tsawg dua los yog sib npaug rau 0.02dB |
|
combustion |
IEC 60332-1-2 |
Flammability |
Yuav tsum muaj peev xwm dhau los ntawm ib qho ntsug combustion |
|
Cov pa luam yeeb ntom ntom |
Tsis pub tsawg tshaj 50 feem pua |
||
|
Corrosive |
Cov pa roj PH tsawg dua lossis sib npaug li 4.3 thaum hlawv, qhov conductivity yuav tsum tsawg dua lossis sib npaug li 10 μs / mm |
||
|
* Txhua qhov kev hloov kho qhov muag fiber ntau tau saib xyuas ntawm lub wavelength ntawm 1550 nm. |
|||
Cov ntaub ntawv ntim khoom:
Txheem ntoo nruas (Pallets) lossis thawv thawv;
Txheem Length: 1000m / 2000m lossis customized
Ordering Info:
|
1 Fiber Unit: |
Tsis-fiber / J-compact fiber / D-Band fiber |
|
|
2 fiber ntau cores: |
1~8 |
|
|
3 Hom fiber ntau: |
A1a(50/125) / A1b(62.5/125)/B6a2(G657A2)/B1.3(G652D) |
|
Cim npe nrov: gjyxch ftth fiber ntau optic nco cable
